Polcd Mini Screen 0.96" Color Lcd High Resolution 80x160 TFT Display 0.96 Inch TFT LCD Screen Manufacturer

Name: Polcd Mini Screen 096quot Color Lcd High Resolution 80x160 TFT Display 096 Inch TFT LCD Screen Manufacturer
Brand: Polcd
Price: 1 USD

Wholesale Polcd Mini Screen 0.96" Color Lcd High Resolution 80x160 TFT Display 0.96 Inch TFT LCD Screen Manufacturer from china suppliers

Brand Name : Polcd

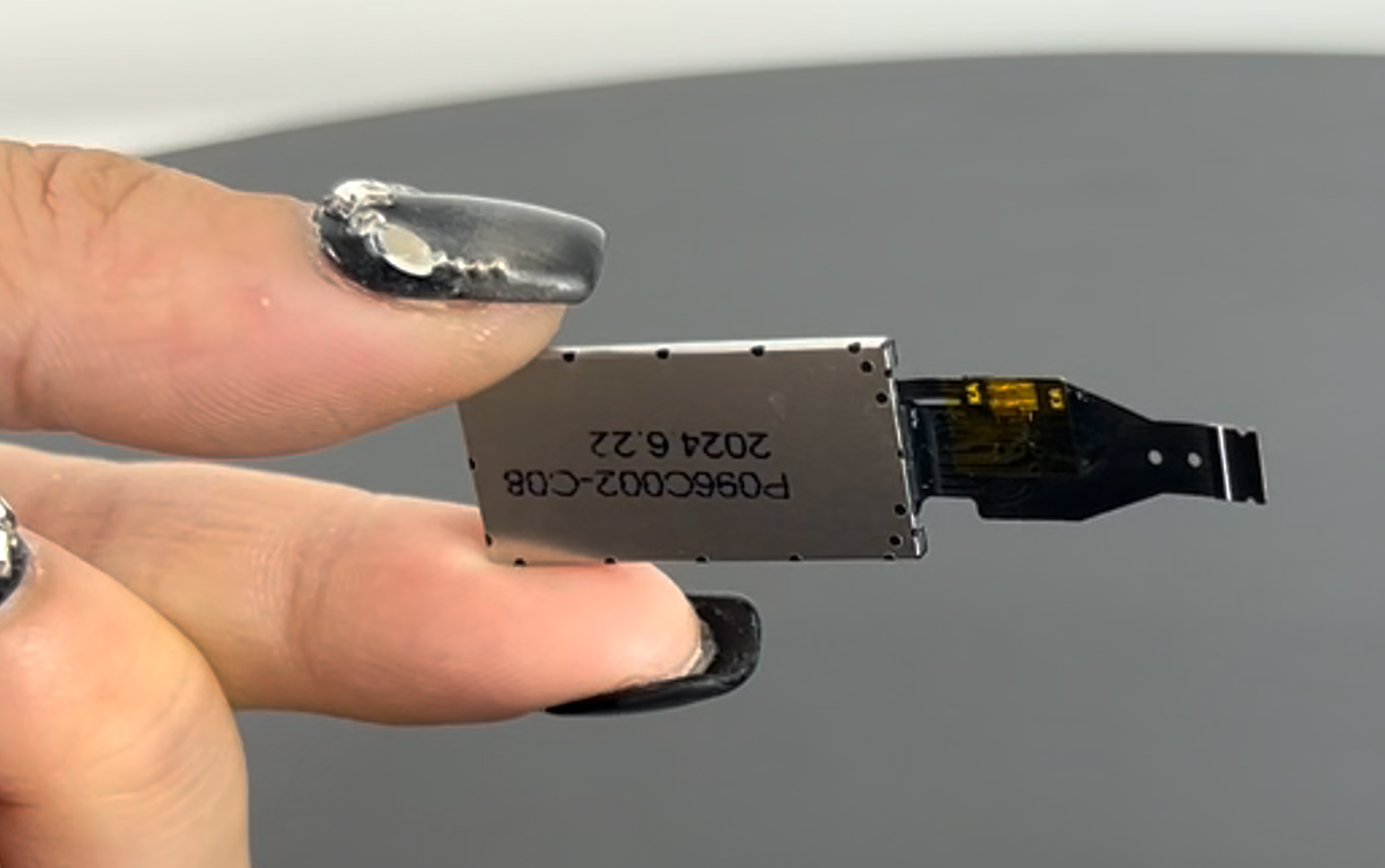

Model Number : P096C002-C08

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal

Supply Ability : 500,000 piece per week

Delivery Time : 1~7 working days

Packaging Details : 20 cm * 30 cm * 40 cm

Screen Size : 0.96 inch

Resolution : 80x160

Active area : 10.8(H) x 21.7(V) mm

Brightness (cd/m²) : 400 nit

Interface : 4 Line SPI

Driver Ic : ST7735S

Contact Now

Parameter:

Model	P096C002-C08
Screen Size	0.96 inch
Number of Pixel	80RGB(H)x160(V)
Active area	10.8(H)x21.7(V)mm
Pixel pitch	0.135(H)x0.135(V)mm
Pin	8 pin
Outline Dimension	13.5(H) x 27.95(V) x1.5Max(D) mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	400 nit
Contrast Ratio	1500:1
Interface	4Line SPI
Back-light	LED Side-light type
Drive IC	ST7735S
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
Weight	1.1g

Polcd Mini Screen 0.96" Color Lcd High Resolution 80x160 TFT Display 0.96 Inch TFT LCD Screen Manufacturer
